Nickel Clad Copper (NCC) Wire

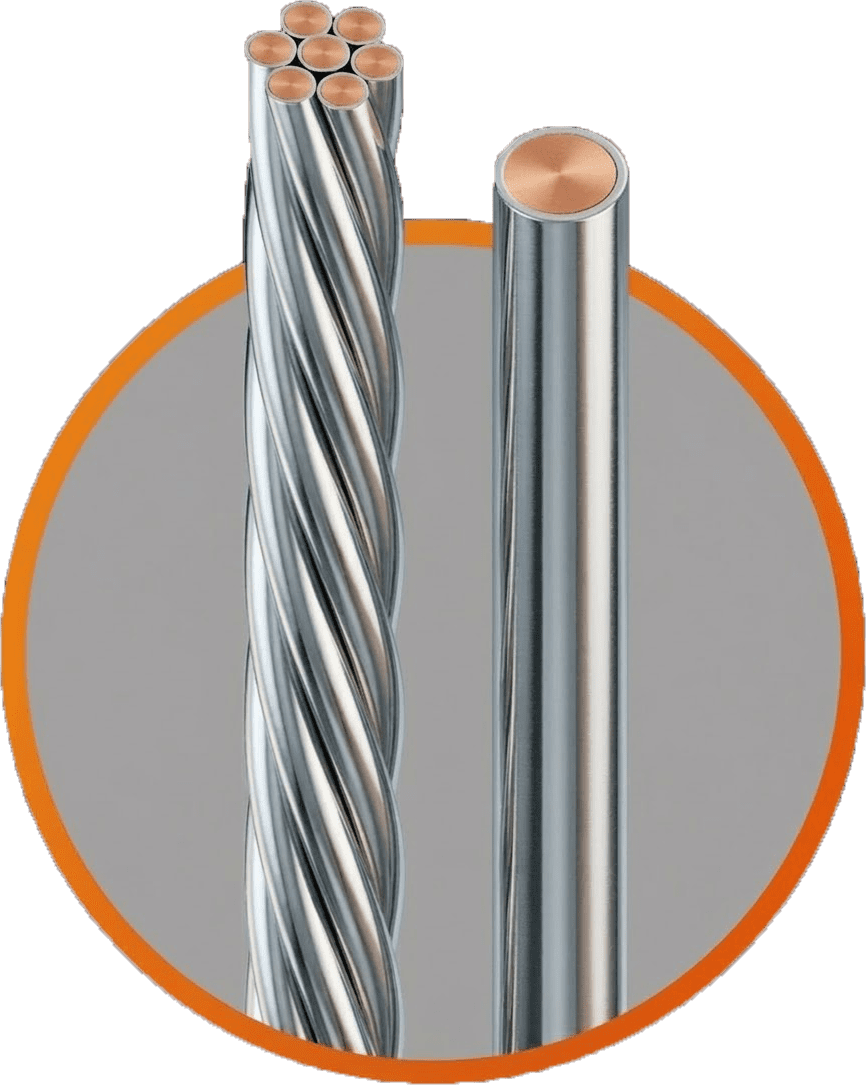

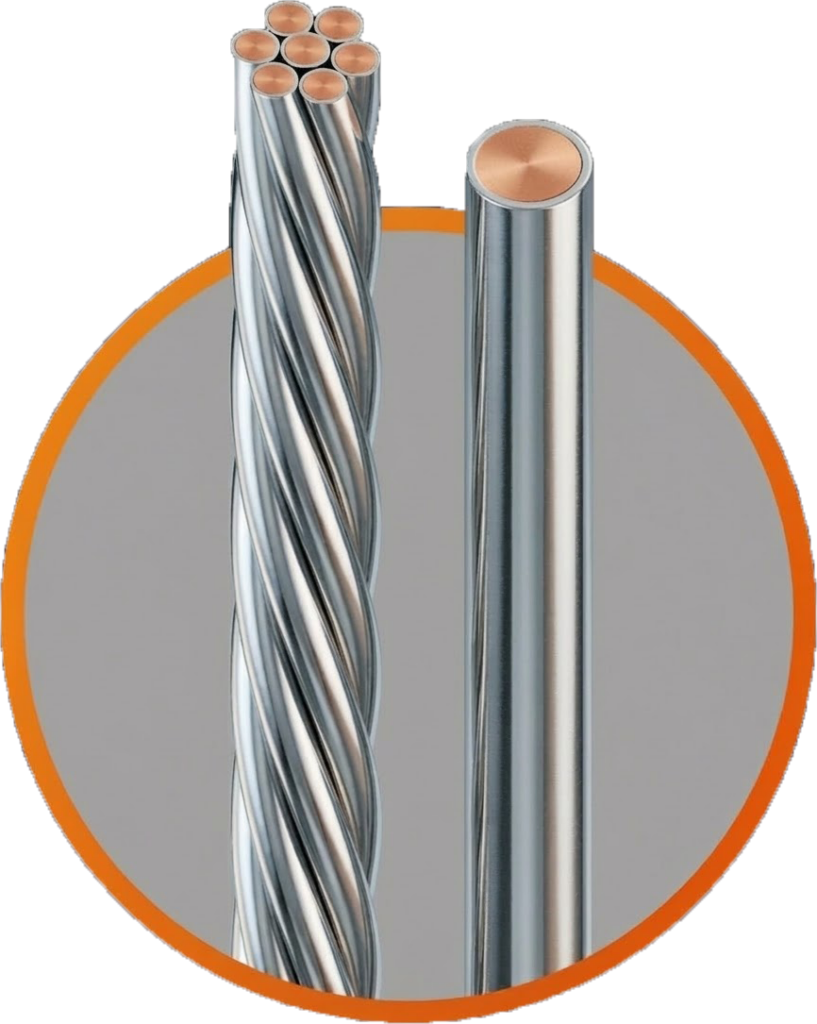

FISSOT® Nickel Clad Copper (NCC) Wire is a high-performance bimetallic conductor specifically engineered for extreme thermal and corrosive environments. Utilizing advanced Cold Cladding Technology, a protective nickel shield is metallurgically bonded to a high-conductivity copper core. This synergy ensures the electrical efficiency of copper remains intact while providing superior oxidation resistance.

🌟 Key Benefits of Nickel Clad Copper Wire

🔥 Extreme Heat Resistance: Reliable continuous operation from 250°C to 450°C—outperforming tin and silver plating.
🛡️ Anti-Corrosion Shield: Exceptional resistance to oxidation and harsh chemicals, including alkaline solutions.
⚡ High Conductivity: Maintains 94%–96% IACS conductivity, ensuring minimal power loss compared to pure nickel.
💎 Seamless Bond: Advanced mechanical cladding prevents flaking and peeling during high-speed weaving or bending.

🚀 Top Applications

🔋 Hydrogen Energy: Ideal for electrode meshes in Alkaline Water Electrolysis (ALK).
✈️ Aerospace: Critical engine wiring, sensors, and aircraft electrical systems.
🏭 High-Temp Industry: Lead wires for industrial furnaces, heating elements, and kilns.
🚗 Automotive: High-performance oxygen sensors and exhaust system electronics.

Contact Us for Pricing

Interested in this product? Contact us now for detailed pricing and product information.

AWG	Diameter		Sectional Area		Nickel Cladding Layer		High Temp Performance			Mechanical Properties			Weight (Ref)		Max DC Res. (20°C)
AWG	in	mm	in²	mm²	μm	Ni %	Cont. °C	Peak °C	% IACS	Ibf	kgf	Mpa	lb/k-ft	kg/km	Ω/k-ft	Ω/km
12	0.0808	2.053	0.00512	3.31	15.2	27%	450	600	94%	154.1	69.9	207	28.5	42.4	1.661	5.450
14	0.0641	1.628	0.00323	2.08	12.1	27%	450	600	94%	96.8	43.9	207	17.9	26.6	2.646	8.680
16	0.0508	1.291	0.00203	1.31	9.6	27%	450	600	94%	61.0	27.7	207	11.3	16.8	4.191	13.750
18	0.0403	1.024	0.00127	0.82	7.6	27%	450	600	94%	38.2	17.3	207	7.1	10.5	6.690	21.950
20	0.0320	0.812	0.00080	0.52	6.0	27%	450	600	94%	24.2	11.0	207	4.5	6.7	10.552	34.620
22	0.0253	0.644	0.00050	0.33	4.8	27%	450	600	94%	15.4	7.0	207	2.9	4.3	16.641	54.590
24	0.0201	0.511	0.00032	0.20	3.8	27%	450	600	94%	9.3	4.2	207	1.8	2.7	27.432	90.000

AWG	Diameter		Sectional Area		Nickel Cladding Layer		High Temp Performance			Mechanical Properties			Weight (Ref)		Max DC Res. (20°C)
AWG	in	mm	in²	mm²	μm	Ni %	Cont. °C	Peak °C	% IACS	Ibf	kgf	Mpa	lb/k-ft	kg/km	Ω/k-ft	Ω/km
12	0.0808	2.053	0.00512	3.31	5.6	10%	250	400	96%	154.1	69.9	207	29.2	43.5	1.625	5.330
14	0.0641	1.628	0.00323	2.08	4.5	10%	250	400	96%	96.8	43.9	207	18.4	27.4	2.588	8.490
16	0.0508	1.291	0.00203	1.31	3.5	10%	250	400	96%	61.0	27.7	207	11.6	17.3	4.103	13.460
18	0.0403	1.024	0.00127	0.82	2.8	10%	250	400	96%	38.2	17.3	207	7.3	10.9	6.541	21.460
20	0.0320	0.812	0.00080	0.52	2.2	10%	250	400	96%	24.2	11.0	207	4.6	6.9	10.317	33.850
22	0.0253	0.644	0.00050	0.33	1.8	10%	250	400	96%	15.4	7.0	207	2.9	4.4	16.271	53.380
24	0.0201	0.511	0.00032	0.20	1.4	10%	250	400	96%	9.3	4.2	207	1.8	2.7	26.822	88.000

FAQs About Nickel-Clad Copper Wire

Why is NCC wire preferred over pure nickel wire for Alkaline Water Electrolysis (ALK) electrodes?

While pure nickel offers excellent corrosion resistance, its electrical conductivity is relatively low. FISSOT® Nickel-Clad Copper (NCC) wire combines the high conductivity of copper (over 94% IACS) with the chemical stability of a nickel shell. In ALK environments, NCC wire significantly reduces energy consumption and heat generation while the nickel cladding acts as a physical barrier against corrosive electrolytes, making it a more cost-effective and efficient industrial electrode material.

What are the advantages of Mechanical Cladding over standard Nickel Plating?

Traditional electroplating can be porous and prone to flaking under high temperatures or bending. We utilize an advanced mechanical cladding and reduction rolling process that creates a dense, metallurgical bond between the nickel and copper at the atomic level. This ensures a highly uniform cladding thickness that will not crack or peel even during high-speed weaving or under extreme mechanical stress, greatly extending the service life in harsh environments.

What is the maximum continuous operating temperature for NCC wire?

The thermal performance of NCC wire depends on the nickel cladding ratio. NCC wire with 10% nickel content can typically withstand continuous temperatures up to 250°C. Our 27% nickel content products are specifically engineered for extreme environments, supporting long-term operation at 450°C and withstanding short-term temperature peaks up to 600°C. This makes it the ideal choice for aerospace engine wiring and industrial furnace leads.

Is the conductor solderable, and are there specific requirements for the welding process?

Yes, it is. Since the surface is a pure nickel layer, NCC wire exhibits excellent solderability. For high-temperature applications, we typically recommend high-silver content solder or the use of laser welding and spot welding techniques. Because of the tight bond between the nickel and copper core, there is no risk of base metal "bleeding" or leaching, which is a common issue with lower-quality plated wires.

Does FISSOT® offer customized nickel content and AWG specifications?

Absolutely. We understand that B2B clients have specific requirements for electrical resistance and corrosion protection. In addition to our standard 10% and 27% nickel-by-weight ratios, we can customize the cladding thickness to meet your technical benchmarks. We support production across a wide range of sizes, from heavy gauges to ultra-fine wires (such as 24 AWG and finer), catering to diverse industrial harnesses and precision sensors.
