For decades, the engineering consensus defaulted to solid copper for earthing systems. However, modern grid resiliency and the volatility of global metal markets have forced a re-evaluation of material physics. The emergence of High-Performance Copper-Clad Steel (CCS) is not merely a cost-saving measure; it is a superior response to the mechanical and high-frequency demands of 21st-century lightning protection.
1. High-Frequency Impedance & The Skin Effect
Lightning is characterized by transient pulses with rise times in the microsecond range, translating to high-frequency spectral content. In these conditions, the Skin Effect dictates that current density is highest at the conductor’s surface. The skin depth ($\delta$) is calculated as:
$$\delta = \sqrt{\frac{1}{\pi f \mu \sigma}}$$
Because the core of a conductor carries negligible current during a lightning strike, a solid copper wire is an inefficient use of material. By utilizing CCS conductors, we leverage a high-conductivity copper “skin” over a high-strength steel core. This provides the exact impedance profile required to dissipate surge energy without the prohibitive weight or cost of solid copper.
2. Mechanical Resilience vs. Soil Electrodynamics
A grounding system is only as reliable as its physical connection to the earth. Solid copper conductors are prone to “cold flow” and mechanical deformation during high-pressure installation. In contrast, the steel core of a copper-clad steel rod offers a significantly higher Young’s Modulus.
- Deep-Earth Installation: CCS rods resist “mushrooming” when driven through high-density strata or rocky fill.
- Thermal Dissipation: During a short-circuit fault, the steel core provides a superior thermal heat sink, preventing the annealing and subsequent weakening of the grounding network.
3. Metallurgical Bonding & Corrosion Mitigation
The primary critique of bimetallic conductors is the risk of galvanic corrosion if the copper layer is breached. FISSOT mitigates this through rigorous industrial manufacturing standards. Unlike simple “electro-plated” alternatives, our CCS features a molecular metallurgical bond.
“By eliminating oxygen at the interface of the two metals, we create a void-free union that prevents internal oxidation, ensuring a 40+ year service life in aggressive pH soils.”

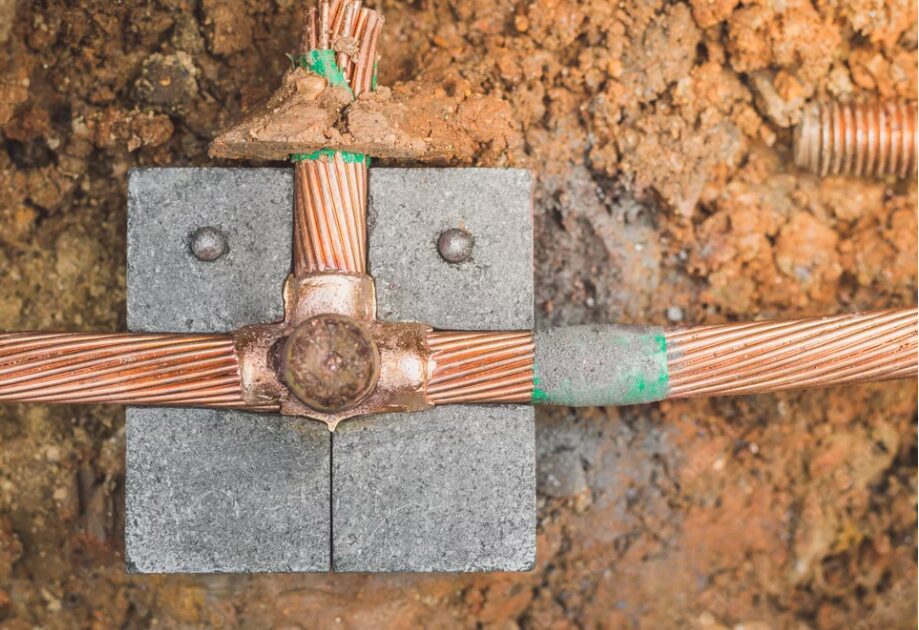

To further protect these systems, the integrity of the joints is critical. This molecular connection maintains the copper-to-copper path across joints, effectively bypassing the steel core at connection points to maintain low resistance throughout the lightning protection system.
4. Total Cost of Ownership (TCO) & The Security Mandate
The “Theft Deterrent” nature of CCS is a primary security requirement for modern infrastructure. Copper theft causes more than just material loss; it causes unprotected downtime and potential catastrophic failure during the next storm event.
| Performance Metric | Soft-Drawn Copper | FISSOT CCS Conductor |
|---|---|---|
| Tensile Strength (psi) | ~35,000 | Up to 110,000 |
| Scrap Value (Theft Risk) | Extreme | Negligible |
| Installation Reliability | Moderate (Pliable) | High (Stiff/Durable) |
Strategic Conclusion: The Future of Infrastructure Grounding
As global infrastructure moves toward smarter, more resilient grids, the materials we bury in the ground must meet higher standards of engineering precision. CCS technology provides the optimal balance of electro-dynamic performance and physical longevity.
Technical Consultation: FISSOT provides a comprehensive range of lightning protection solutions. For soil resistivity analysis or project-specific engineering support, contact our team at fissot.com.
